Pro-Series Parts Prices

Compare LEX-AIRE's reasonable prices for high quality parts to competitors before you buy!

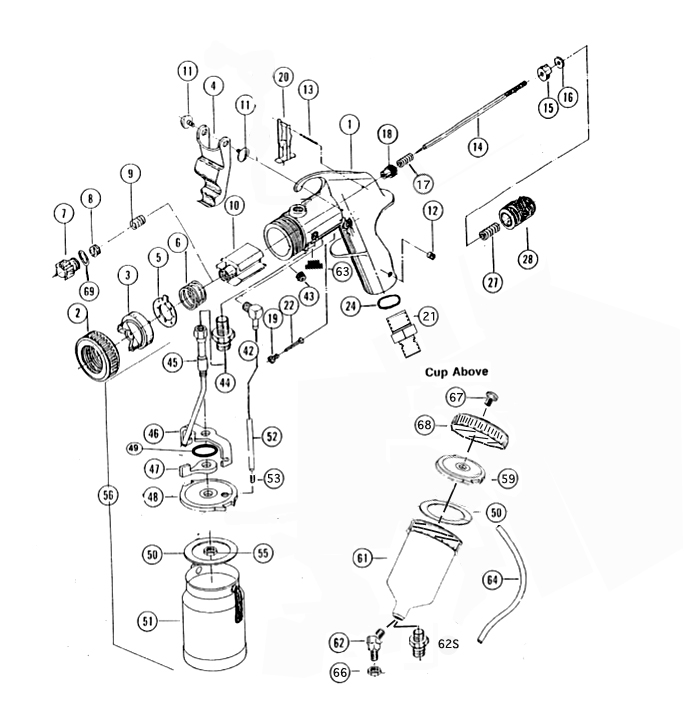

SPRAY GUN PARTS

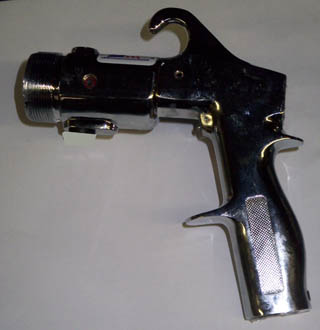

1 Spray Gun Body (4301) 88.00
2 Pattern control ring - metal (4002) 15.95
3 Pro Series Air Cap 44.95
4 Trigger (4304) 18.95
5 Air cap detent plate (4005) 5.95
6 Air cap spring (4006) 2.75

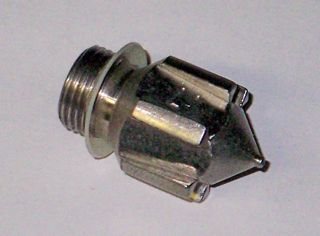

7 Fluid nozzle (choose size from chart) 36.75
8 Packing adj. screw (4008) 3.30
9 Needle packing kit (4009) 16.50
10 Fluid nozzle holder (4010) 45.00
11 Trigger screw (4311) 2.75
12 Set Screw - Gun handle (4312) 0.35
13 Actuator pin (4313) 0.80
14 Fluid Needle ( See Size chart) 29.45

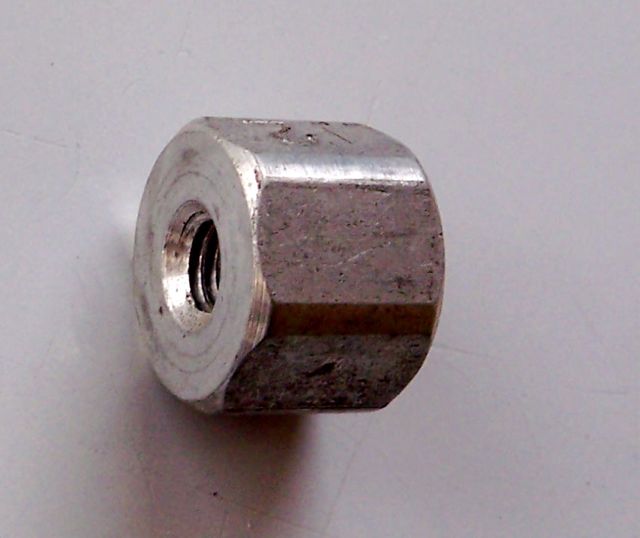

15 Needle Drum (4015) 3.60
17 Driving Ring Spring (4317)
18 Needle driving ring (4318) 6.95
19 Trigger axle guide (4319) Sold w/axle 12.65
20 Needle Actuator (4320) 15.95
21 Air Inlet fitting (4321) 9.82
22 Trigger axle (4322)
Sold with axle guide
12.65
24 Air Inlet O Ring (4324) 0.95
27 Needle return spring (4027) 3.18
28 Fluid reg cap (4028a) 13.95
42 Air pressure elbow (4042) 19.95
43 Air pressure plug (4043) 0.66
44 Fluid inlet fitting - Bottom Feed (4044) 8.95
45 Fluid tube (4045) 16.25
47 Cup Lever (4047) 12.00
50 Cup gaskets (5 pk)(4050) 8.95
51 1 Qt Cup- Bottom Feed - Spare 27.96
52 Check Valve - Bottom Feed (4052) 3.00
53 pressure hose stem (4053) 2.20
55 Lid Retaining Nut (4055) 2.20
56 1 Quart cup assy- Bottom Feed (4056) 72.95
58 Pressure Gauge (0-15 psi) (4058) 24.95
60 32.00
61 Top Feed Cup - 21 Oz cup only 21.95
62 Fluid Inlet Fitting - Top Feed (4062) 34.95

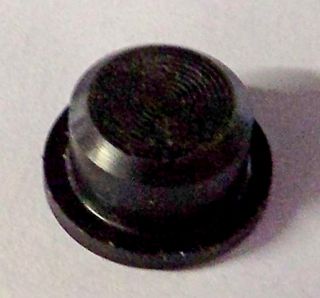

63 Gun body Fluid Inlet Plug (4063) 3.95
64 Check Valve - Top Feed (4064) 4.00

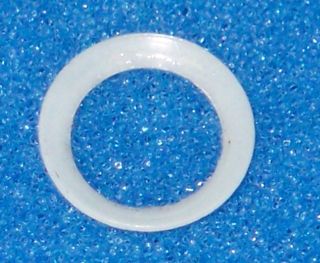

69 Nozzle Gasket (4069) 5 pk 1.75

Nozzle Wrench &
Packing Wrench
11.95
59 Floating Gasket Plate (4048b) 23.95
68 Metal Lid - Red (4094m) 29.95
67 Top Cup Air Inlet (2520d) 12.50
Self-Klean Check Valve 25.00

Nozzle/Needle/Air Cap Sets

0.7 mm fluid set with air cap 98
1.0 mm fluid set with air cap 98
1.2 mm fluid set with air cap 98
1.4 mm fluid set with air cap 98
1.6 mm fluid set with air cap 98
1.8 mm fluid set with air cap 98
1.8 mm fluid set with air cap 98
2.0 mm fluid set with air cap 98

Nozzle/Needle Sets

0.7 mm Fluid Set Pro Series 66
1.0 mm Fluid Set Pro Series 66
1.2 mm Fluid Set Pro Series 66
1.4 mm Fluid Set Pro Series 66
1.6 mm Fluid Set Pro Series 66
1.8 mm Fluid Set Pro Series 66
2.0 mm Fluid Set Pro Series 66

Needle / Nozzle Sizes

Needle 0.5 mm 29.45
Needle 0.7 mm 29.45
Needle 1.0 mm 29.45
Needle 1.2 mm 29.45
Needle 1.4 mm 29.45
Needle 1.6 mm 29.45
Needle 1.8 mm 29.45
Needle 2.0 mm 29.45
Needle 2.8 mm 29.45
0.5 Nozzle Pro Series 36.75
0.7 Nozzle Pro Series 36.75
1.0 Nozzle Pro Series 36.75
1.2 Nozzle Pro Series 36.75
1.4 Nozzle Pro Series 36.75
1.6 Nozzle Pro Series 36.75
1.8 Nozzle Pro Series 36.75
2.0 Nozzle Pro Series 36.75
2.8 Nozzle Pro Series 36.75

Order Your Parts

Call us at 800-LEX-AIRE 800-539-2473

781-646-1102 Outside U.S.A.

Nationwide SalesArlington, Massachusetts

email us with orders, comments and suggestions
